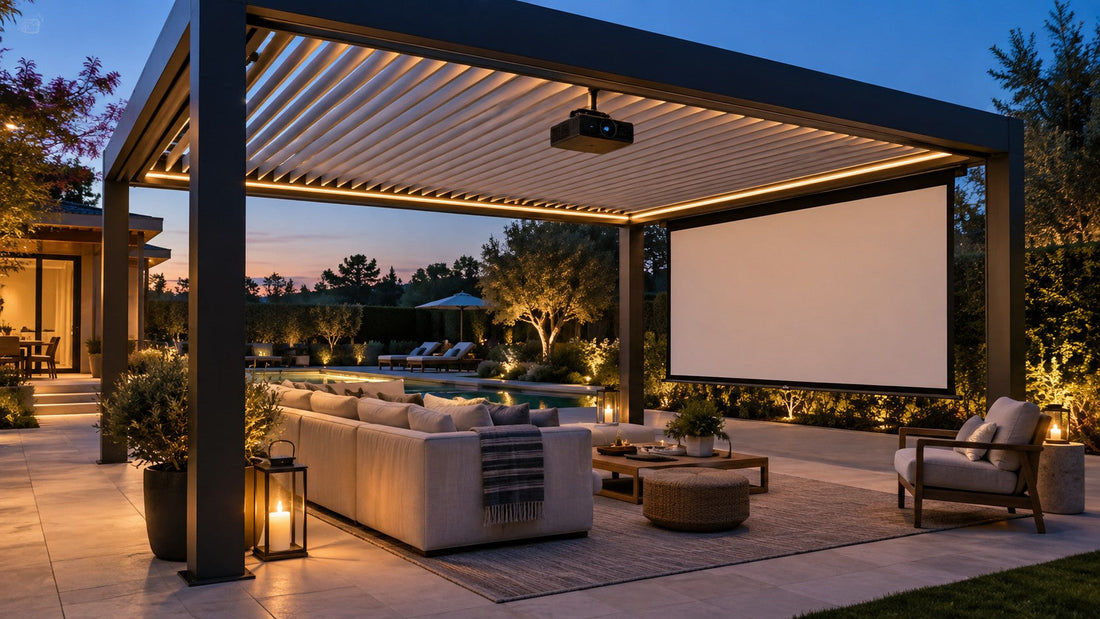

How Do You Plan a Projector and Screen Under a Pergola?

Projection and patio planning

A projector setup under a pergola starts with three checks: the screen must fit the exact side opening, the projector must form the intended image within the available distance, and every device must suit the conditions in which it will run. FlexPatio offers a motorized projection screen, but the side-size label alone does not establish usable image dimensions or projector compatibility. Confirm those details before choosing equipment, then test the lens position, seating and evening light together. Resolve any conflicting installation drawing before mounting the screen, and plan a dry-weather session with a clear route indoors if conditions change.

Separate the side opening from the picture size

The FlexPatio Motorized Projection Screen is a side-wall accessory, with 10-foot and 13-foot choices shown on the current product page. Those labels identify options to investigate. They do not tell you the usable picture width, the image diagonal or the distance a projector needs.

Ask for the usable white surface width and drop, plus the mounting drawing for the exact pergola and screen combination. Confirm whether the intended projector's image format fits that surface. An image spilling onto tracks or beyond the bottom edge is a layout problem that the nominal side label cannot resolve.

The published screen material reviewed here does not establish gain, ambient-light-rejection performance or front-versus-rear projection suitability. Ask for those details when they matter to your projector choice. A privacy roller shade also should not be treated as an equivalent projection surface without supporting documentation.

Draw the lens position into the patio plan

Start with a top-down sketch showing the screen plane, projector lens, furniture and walking route. Use the selected projector's own distance table or calculator to test the image size. Measure from the reference point specified by that manufacturer, rather than estimating from the table edge or the pergola's outside dimensions.

As a model-specific example, the Epson EF21/EF22 guide explains that projection distance, aspect ratio and settings affect image size. It also recommends stable placement, ventilation and facing the screen squarely. This illustrates the checks to make; it does not establish compatibility between an Epson projector and a FlexPatio screen.

Draw the beam path from lens to screen. Place seats where heads will not interrupt it, and keep the main route to the house away from the projector stand and cables. Walk that route during a trial. A layout that looks generous on paper may put the lens exactly where someone carries drinks through the space.

Confirm the screen installation before adding electronics

The current 10-side white screen manual shows a roller assembly, tracks and specified wiring arrangements. It includes raise, stop and lower controls. Have the installer identify the exact accessory, mounting side, manual revision and approved connection method on your plan.

Ask for a demonstration of normal movement and stopping with the path clear. Keep furniture and decorations outside that path. The manual's connection restrictions make this an accessory installation that needs its specified components; do not improvise a connection to a nearby post cable or outlet.

A projector support is a separate decision. Obtain approval for any attachment to the pergola rather than drilling a convenient hole or hanging equipment from a moving louver. Have the installer and electrician resolve structural and electrical requirements for the location, including any applicable local approvals. This article does not specify an anchor, circuit or mounting capacity.

Test one evening before committing to the layout

Make the first test resemble the way you intend to watch. Use the intended seats and viewing time, show a familiar dark scene and subtitles, and leave essential route lighting on. Note reflections or bright light reaching the screen from the house, street or neighboring property. Adjust one factor at a time so you know which change helps.

Also test dialogue at a considerate listening level and check the video source from its proposed position. Decide where remotes will be kept and how guests can leave without crossing the beam. These simple observations are more useful than assuming a product photograph proves how the picture will look in your yard.

Make weather and storage part of the setup. For example, Epson's EF21/EF22 manual prohibits use where rain, water or excessive humidity may reach the unit and warns against extended outdoor storage. Follow the limits for your actual projector, power supply and connected equipment. A covered location does not establish that those conditions are satisfied.

The National Weather Service says covered patios and pavilions are not adequate lightning shelter. Move indoors when thunder is heard and wait 30 minutes after the last thunder before resuming outdoor activities. Plan equipment shutdown before bad weather arrives; NWS also advises against unplugging equipment during a thunderstorm. Leave promptly rather than staying outside to pack up.

Before choosing the screen and projector

• Obtain the correct screen drawing and confirmed usable image dimensions.
• Verify projection mode and surface compatibility with the selected projector.
• Plot the lens position using that projector's distance guidance.
• Keep seating, walking routes and moving screen components clear.
• Confirm mounting, electrical arrangements and equipment environmental limits.
• Test the intended viewing conditions and plan an indoor alternative.
