How Do You Plan an L-Shaped Motorized Pergola?

Custom pergola layout planning guide

An L-shaped motorized pergola can work when two connected rectangular zones fit the site and each zone has a clear job. Start with the dining, lounge, cooking or circulation areas you want to cover; then map the shared corner, posts, doors, runoff and power before choosing module sizes. FlexPatio’s current EASE+ custom page lists L-shaped layouts, but it also warns that connected overlapping areas may have drainage limitations. Treat the online configuration as a design brief, not final approval, and require the exact CAD, connection, drainage and installation documents before ordering.

Begin with two useful zones

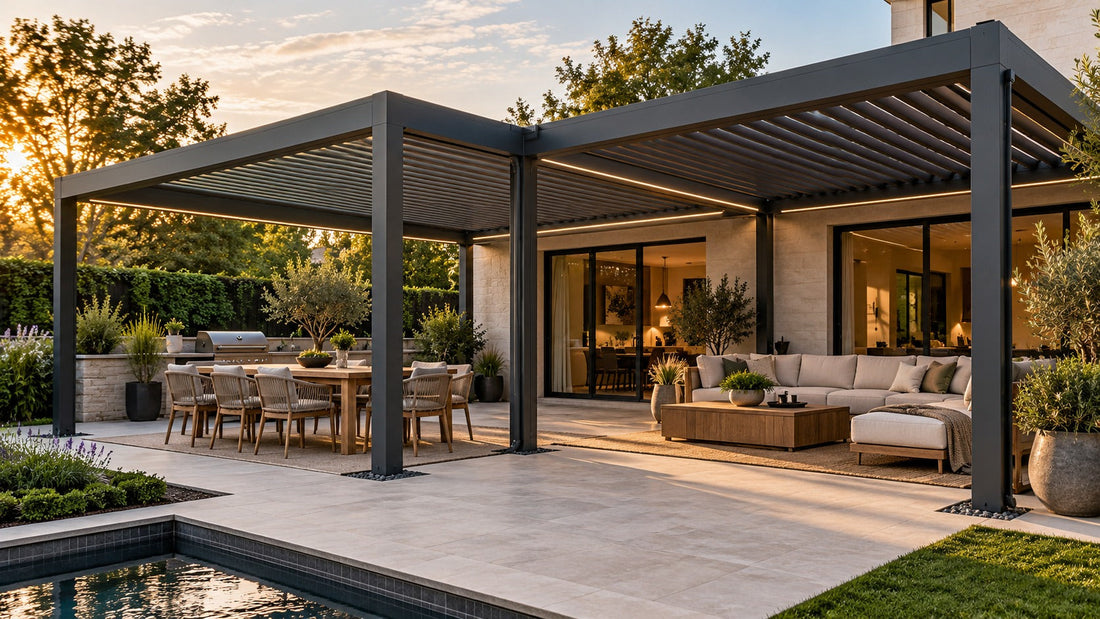

An L-shaped footprint earns its space when one straight rectangle would either cover the wrong area or force unrelated activities into the same path. One leg might shade a dining table while the second follows an outdoor-kitchen run, pool edge or lounge. Draw each function as a rectangle first. Include chairs pulled out, appliance doors, serving paths and the route people use to enter the house.

The current FlexPatio EASE+ custom pergola page lists single, linear, L-shaped, T-shaped and grid layouts. It also says shared side dimensions are matched and locked in the configurator. That makes the shared geometry a system constraint, not leftover space to adjust casually after the rest of the layout is chosen.

Keep the inside corner from becoming a pinch point. A dining chair, grill lid, glass door, roller shade track or post can all compete for the same few feet. If the corner cannot support comfortable movement when furniture is in use, separate the modules, reduce one zone or return to a simpler linear plan.

Use connected rectangles, not an irregular roof

The EASE+ FAQ says FlexPatio does not currently support non-90-degree, triangular, pentagonal or other irregular roof shapes. It separately confirms that L-shaped and courtyard-style layouts are available through connected pergolas. Read those statements together: the L is assembled from rectangular roof modules; it is not a single roof cut to an arbitrary property line.

This distinction matters on angled patios, curved pool decks and yards with diagonal setbacks. A named L-shaped option does not mean the roof edge can follow every boundary. Mark the usable rectangular building area and leave irregular leftover space open for circulation, planting or furniture rather than assuming the pergola can absorb it.

Resolve posts and circulation together

The custom page says post number and placement can be customized to create distinct zones. That is a design option, not permission to move a structural post after the drawing is approved. Place posts on the plan while chairs, doors, appliances and walking paths are visible. A post can define a useful edge, but it can also land exactly where a server needs to pass or where a sliding door must open.

Use the inside corner as the first test. Walk a tray, stroller, grill cover or lounge cushion through the drawn route. Then test the outside ends of both legs. If side walls or shades may be added later, reserve the full opening and attachment path now. The side-wall, shade and glass-door guide can help define the enclosure role, but the exact L-shaped configuration still needs its own compatibility review.

Give each zone a power and accessory plan

The EASE+ page describes concealed electrical routing and selectable wire exits. It also presents accessories by beam, post and area. Use that capability deliberately: list the equipment in each leg, where people will control it, and which loads must not share an assumed outlet or connector. Do not let the rendering decide the electrical plan by default.

For example, a cooking leg may need task lighting and independently reviewed appliance power, while a lounge leg may use shades, a fan, a screen or charging outlets. A product appearing in the configurator does not prove it fits every module, post or side-wall combination. Ask the final proposal to identify the exact accessory, location, cable route, connection and control method.

Keep water and power decisions on the same drawing. Roof drainage, post channels and wiring exits can all converge at the connection. Local electrical, structural and drainage requirements vary; a qualified installer, electrician or engineer should review the parts within their scope for the address.

Approve the documents in the right order

FlexPatio describes a custom workflow that moves from an online request to an initial concept, a confirmed proposal and then production-ready CAD drawings. Use the early rendering to test activities and appearance. Use the final CAD and related technical documents to verify dimensions, posts, connections, drainage, power and accessories. Do not let an attractive early image substitute for the final technical set.

This article goes deeper on connected-zone planning than the existing standard-versus-custom pergola guide. It also differs from the modular expansion guide, which focuses on joining pergolas into a larger straight coverage area. Here, the decision is the inside corner and the different work each leg must do.

L-shaped pergola planning checklist

• Draw the clear rectangular area available for each leg.
• Assign one primary function to every covered zone.
• Show chairs, doors, appliances, pool edges and walking paths at working clearance.
• Mark every proposed post and test the inside-corner circulation route.
• Trace roof water through the shared connection to each site discharge point.
• Place side walls, shades, glass doors and fixed screens before finalizing openings.
• List power loads, cable routes, outlets and control points by module.
• Obtain final CAD, connection, drainage, structural and installation documents.
• Complete the address-specific permit, HOA and professional reviews that apply.
